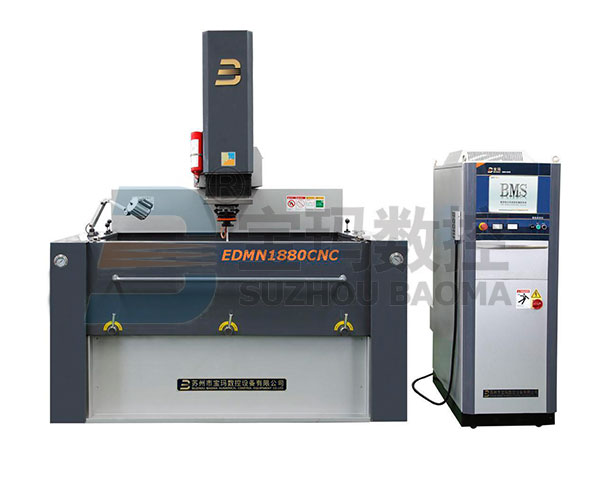

CNC Sinker EDMN1880CNC

CNC Sinker EDM, Die sinking machine

JAPAN SANYO DC servo motor or JAPAN PANASONIC AC servo motor.

Finish: Ra<=0.2um

Current: 60A/100A/150A

Max. Speed: 450mm³/Min/700mm³/Min/1000mm³/Min

Share

    »Specifications / Parameters

    Parameters UNIT EDMN1880CNC
    Working Tank (L x W x H) mm3000 x 1540 x 700
    Max. Oil Level mm600
    Table Size (LxW) mm2000 x 1000
    Travel Size Xmm1800
    X-Twin Spindlemm1200
    Ymm800
    Spindle Travel(Z)mm500
    Distance between Spindle
    Nose to Work Table
    Min.mm600
    Max.mm1150
    Max. Table Load (Workpiece weight) mm7000
    Max. Spindle Hold (Electrode weight) kg250
    Oil Tank L2000*2
    Oil Tank Dimension (L x W x H) mm3480 x 2600 x 700
    Control Method AC / DC (Japan SANYO)
    Rated Current A150 / 200
    Machine Dimension (L x W x H) mm3800 x 4050 x 4050
    Machine Weight kg

    One Spindle: 13000

    Twin Spindle: 15000


    » Current Parameters

    Max.
    Working Current
    Best
    Speed / Efficiency
    Best
    Electrode Loss
    Best
    Surface Finishing
    Input Power
    60A450 mm³/ min.≤0.3%0.2/AC | 0.3/DC7 KVA
    100A750 mm³/ min.≤0.3%0.2/AC | 0.3/DC10 KVA
    150A1000 mm³/ min.≤0.3%0.2/AC | 0.3/DC15 KVA

    »Accuarcy | Precision (Standard:GB/T 5291.1—2001)

    Items Resualt
    Flatness of the workbench 0.03mm / 1000
    X Axis Movement Straightness
    in Y-X plane0.015/ 500
    in Z-X plane0.015 / 500
    Y Axis Movement Straightness in X-Y plane0.015 / 500
    in Z-Y plane0.015 / 500
    Z- Axis Movement Straightness
    (Spindle Perpendicularity )
    move on X axis0.02 / 200
    move on Y axis0.02 / 200
    Parallelism of work table move on X axis0.015 / 300
    move on Y axis0.015 / 300
    X-Y Axis Squareness 0.015 / 500


    » Configuration | Setup

    Resine Sand Casting Machine Body : HT250
    Work Table: HT300
    X/Y Axis: JANPAN SANYO DC/AC Servo
    TAIWAN PMI Linear Guideway
    TAIWAN PMI Ball Screw
    Z Axis:JANPAN SANYO DC/AC Servo
    TAIWAN PMI or HIWIN Linear guideway & Ball screw
    JAPAN NSK Bearing
    UniversalDenmark GRUNDFOS or Taiwan WALRUS Oil Pump
    Taiwan Automatic Fire Extinguisher

    Taiwan Halogen work lamp
    Taiwan Skeet chuck

    Baoma EDM machine is a precision cavity molding machines. Can make use of conductive material (such as copper, graphite, steel) as a tool electrode, the work piece (usually should be conductive material) for processing. Mainly used for precision dies, cavity mold (such as plastic mold, Bakelite mold, die casting mold, etc.), holes, Hole and other processing. Is a machine shop, mold shop ideal processing equipment.


    Baoma EDM machine

    1.Adopt Japan SANYO AC/DC servo motor or JAPAN Panasonic AC servo motor.

    2.X/Y/Z Axis Adopt Taiwan Class P Line Guide way, imported double nut ball screw.

    3.CNC modular structure, the system has good scalability, portability and maintainability.

    4.Machine Body is resin sand, non reniun force advanced casting, Adopt HT300 ageing treatment casting, keep precision long time. Structure is reasonable, no deformation, rigid, durable, precision remains unchanged.

    5.JAPAN NSK bearing, Adopt high quality imported oil pump.

    6.Digital servo system Drive Three-axis, can Flexible Choose the servo strategy during machining according to the feedback signal, ensure keeping continuously, steady and high efficiency machining.

    7.For copper, graphite, steel, on the cavity, and special shape holes machining

    8. Lubrication system uses recovery mode, rail lubrication action at once, and keep the look clean

    9.The computer is Taiwan IPC, the sub-functional modules controlled by a dedicated chip. Greatly improving the timeliness and reliability.

    10.ISO-G Code Program.

    Cleanliness, difficult to process conductive metal molds, complex metal parts and templates. EDM processing machinery manufacturing has become an important part in the mold, electronic equipment, precision machining, automotive parts, military and other fields have a wide range of applications.


    1.Adopt Japan SANYO AC/DC servo motor or JAPAN Panasonic AC servo motor.

    2.X/Y/Z Axis Adopt Taiwan Class P Line Guide way, imported double nut ball screw.

    3.CNC modular structure, the system has good scalability, portability and maintainability.

    4.Machine Body is resin sand, non reniun force advanced casting, Adopt HT300 ageing treatment casting, keep precision long time. Structure is reasonable, no deformation, rigid, durable, precision remains unchanged.

    5.JAPAN NSK bearing, Adopt high quality imported oil pump.

    6.Digital servo system Drive Three-axis, can Flexible Choose the servo strategy during machining according to the feedback signal, ensure keeping continuously, steady and high efficiency machining.

    7.For copper, graphite, steel, on the cavity, and special shape holes machining

    8. Lubrication system uses recovery mode, rail lubrication action at once, and keep the look clean

    9.The computer is Taiwan IPC, the sub-functional modules controlled by a dedicated chip. Greatly improving the timeliness and reliability.

    10.ISO-G Code Program.


    intelligence operation:

    1, manual feed control (MFR0-MFR3) fourth gear speed manual feed available

    2, contact sensing (ST) function

    3, various positioning modes to choose from

    4, way mobile functionality

    5, limit mobility features

    6, return to the starting point processing function

    7, the international standard G code programming

    8, automatic positioning function

    9, discharge position alignment (positioning) function

    10, automatic calculation of neural network processing function (1,2,3 root electrode)

    11, the function automatically calculates the processing conditions (for a given area automatically generated)

    12, LORAN processing function (for a given size translational automatically generated)

    13, empty running function

    14, carrying knives automatic control (AJC) function

    15, very inter-discharge, automatic cleaning arc processing

    16, user program processing functions

    17, manual processing (number of input conditions and data processing) functions

    18, a single processing function of processing conditions

    19, the auxiliary processing function

    20, thread cutting function

    21, the system automatically generates the NC program, automatic processing function (AUTO)

    22, electrode switching, the electrode offset, M / T code and other direct operating functions

    23, straight, circular, spiral, functional

    24, the discharge diagram shows the function

    25, the processing efficiency of the function display

    26, the processing time counting function

    28, Inch / Metric conversion function

    28, self-diagnosis, help, error messages, prompts and other functions

    29, time processing functions

    30, to suspend processing and restore processing functions

    31, off automatic reset function

    Packing

    Packing

Description

»Specifications / Parameters

Parameters UNIT EDMN1880CNC
Working Tank (L x W x H) mm3000 x 1540 x 700
Max. Oil Level mm600
Table Size (LxW) mm2000 x 1000
Travel Size Xmm1800
X-Twin Spindlemm1200
Ymm800
Spindle Travel(Z)mm500
Distance between Spindle
Nose to Work Table
Min.mm600
Max.mm1150
Max. Table Load (Workpiece weight) mm7000
Max. Spindle Hold (Electrode weight) kg250
Oil Tank L2000*2
Oil Tank Dimension (L x W x H) mm3480 x 2600 x 700
Control Method AC / DC (Japan SANYO)
Rated Current A150 / 200
Machine Dimension (L x W x H) mm3800 x 4050 x 4050
Machine Weight kg

One Spindle: 13000

Twin Spindle: 15000


» Current Parameters

Max.
Working Current
Best
Speed / Efficiency
Best
Electrode Loss
Best
Surface Finishing
Input Power
60A450 mm³/ min.≤0.3%0.2/AC | 0.3/DC7 KVA
100A750 mm³/ min.≤0.3%0.2/AC | 0.3/DC10 KVA
150A1000 mm³/ min.≤0.3%0.2/AC | 0.3/DC15 KVA

»Accuarcy | Precision (Standard:GB/T 5291.1—2001)

Items Resualt
Flatness of the workbench 0.03mm / 1000
X Axis Movement Straightness
in Y-X plane0.015/ 500
in Z-X plane0.015 / 500
Y Axis Movement Straightness in X-Y plane0.015 / 500
in Z-Y plane0.015 / 500
Z- Axis Movement Straightness
(Spindle Perpendicularity )
move on X axis0.02 / 200
move on Y axis0.02 / 200
Parallelism of work table move on X axis0.015 / 300
move on Y axis0.015 / 300
X-Y Axis Squareness 0.015 / 500


» Configuration | Setup

Resine Sand Casting Machine Body : HT250
Work Table: HT300
X/Y Axis: JANPAN SANYO DC/AC Servo
TAIWAN PMI Linear Guideway
TAIWAN PMI Ball Screw
Z Axis:JANPAN SANYO DC/AC Servo
TAIWAN PMI or HIWIN Linear guideway & Ball screw
JAPAN NSK Bearing
UniversalDenmark GRUNDFOS or Taiwan WALRUS Oil Pump
Taiwan Automatic Fire Extinguisher

Taiwan Halogen work lamp
Taiwan Skeet chuck
Application

Baoma EDM machine is a precision cavity molding machines. Can make use of conductive material (such as copper, graphite, steel) as a tool electrode, the work piece (usually should be conductive material) for processing. Mainly used for precision dies, cavity mold (such as plastic mold, Bakelite mold, die casting mold, etc.), holes, Hole and other processing. Is a machine shop, mold shop ideal processing equipment.


Baoma EDM machine

1.Adopt Japan SANYO AC/DC servo motor or JAPAN Panasonic AC servo motor.

2.X/Y/Z Axis Adopt Taiwan Class P Line Guide way, imported double nut ball screw.

3.CNC modular structure, the system has good scalability, portability and maintainability.

4.Machine Body is resin sand, non reniun force advanced casting, Adopt HT300 ageing treatment casting, keep precision long time. Structure is reasonable, no deformation, rigid, durable, precision remains unchanged.

5.JAPAN NSK bearing, Adopt high quality imported oil pump.

6.Digital servo system Drive Three-axis, can Flexible Choose the servo strategy during machining according to the feedback signal, ensure keeping continuously, steady and high efficiency machining.

7.For copper, graphite, steel, on the cavity, and special shape holes machining

8. Lubrication system uses recovery mode, rail lubrication action at once, and keep the look clean

9.The computer is Taiwan IPC, the sub-functional modules controlled by a dedicated chip. Greatly improving the timeliness and reliability.

10.ISO-G Code Program.

Cleanliness, difficult to process conductive metal molds, complex metal parts and templates. EDM processing machinery manufacturing has become an important part in the mold, electronic equipment, precision machining, automotive parts, military and other fields have a wide range of applications.


Features

1.Adopt Japan SANYO AC/DC servo motor or JAPAN Panasonic AC servo motor.

2.X/Y/Z Axis Adopt Taiwan Class P Line Guide way, imported double nut ball screw.

3.CNC modular structure, the system has good scalability, portability and maintainability.

4.Machine Body is resin sand, non reniun force advanced casting, Adopt HT300 ageing treatment casting, keep precision long time. Structure is reasonable, no deformation, rigid, durable, precision remains unchanged.

5.JAPAN NSK bearing, Adopt high quality imported oil pump.

6.Digital servo system Drive Three-axis, can Flexible Choose the servo strategy during machining according to the feedback signal, ensure keeping continuously, steady and high efficiency machining.

7.For copper, graphite, steel, on the cavity, and special shape holes machining

8. Lubrication system uses recovery mode, rail lubrication action at once, and keep the look clean

9.The computer is Taiwan IPC, the sub-functional modules controlled by a dedicated chip. Greatly improving the timeliness and reliability.

10.ISO-G Code Program.


Control System

intelligence operation:

1, manual feed control (MFR0-MFR3) fourth gear speed manual feed available

2, contact sensing (ST) function

3, various positioning modes to choose from

4, way mobile functionality

5, limit mobility features

6, return to the starting point processing function

7, the international standard G code programming

8, automatic positioning function

9, discharge position alignment (positioning) function

10, automatic calculation of neural network processing function (1,2,3 root electrode)

11, the function automatically calculates the processing conditions (for a given area automatically generated)

12, LORAN processing function (for a given size translational automatically generated)

13, empty running function

14, carrying knives automatic control (AJC) function

15, very inter-discharge, automatic cleaning arc processing

16, user program processing functions

17, manual processing (number of input conditions and data processing) functions

18, a single processing function of processing conditions

19, the auxiliary processing function

20, thread cutting function

21, the system automatically generates the NC program, automatic processing function (AUTO)

22, electrode switching, the electrode offset, M / T code and other direct operating functions

23, straight, circular, spiral, functional

24, the discharge diagram shows the function

25, the processing efficiency of the function display

26, the processing time counting function

28, Inch / Metric conversion function

28, self-diagnosis, help, error messages, prompts and other functions

29, time processing functions

30, to suspend processing and restore processing functions

31, off automatic reset function
