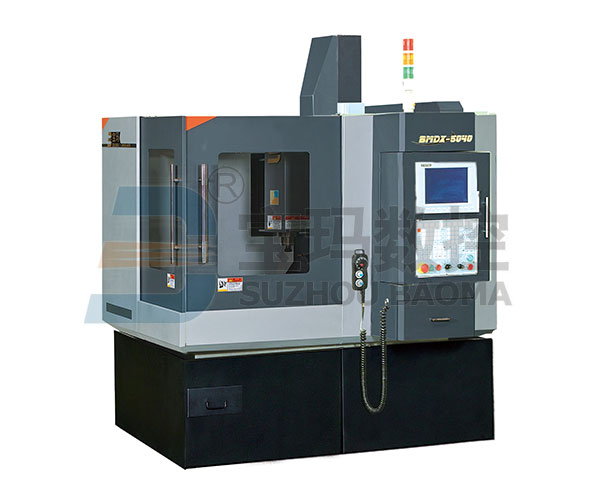

BMDX5040 CNC Engraving & Milling Machine

1, Integral Gantry structure, high rigidity machine body.

2, Convenient load big work piece by hoist.

3, Advanced finite element analysis.

4, Precision ball bearing screw.

5, Scrap can be easily cleaned.

6, High speed and precision spindle.

7, Humanity design on the control cabinet.


Share

    CNC Engraving & Milling Machine BMDX5040 Parameters


    Travel / spaceX/Y/Z axis travelmm400 / 500 / 210
    Table upper surface to spindle nose end facemm80 - 290
    AccuracyPositioningmm± 0.005 / 300
    Repeatabilitymm± 0.003 / 300
    TableTable dimensionmm420 x 600
    Max. load on tableKg200
    Power (X Y Z)Kw0.75,0.75,0.75
    T shape groovemm14T x P80 x 5
    Spindle24000rpm / 2.2 kw / ER20 (tool diameter 3.175 - 12)
    Feeding speedRapid speed (X/Y/Z)mm / min7500
    Cutting speed (X/Y/Z)mm / min6000
    Outer size and weightMachine heightmm1750
    Floor spacemm1600 x 1560
    Net weightKg2000
    Total input powerKw12


    1. The opening protector design makes big work piece loading easily.

    2. In design we use the advanced finite element software to do dynamic simulation and construction analysis in order to ensure the machine possesses the best construction rigidity, machining precision and machining steady.

    3. X, Y, Z use precision ball bearing screw, all have be hauled advance, that will ensure machine get the best precision and make the position error to the lowest.

    4. The slop bed and the big capacity water tank make scrap to be cleaned easily.

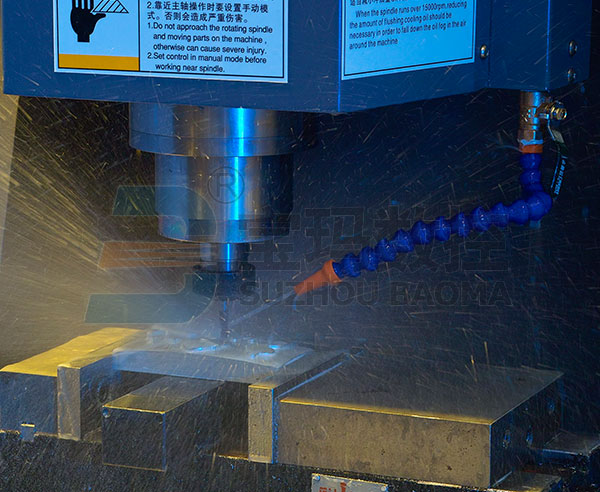

    5. The one key to make sure the machining result excellent is high speed and precision spindle. The power source for small tool engraving comes from the electric motor of high speed and precision spindle. If you want to make the small tool working in good condition, the spindle electric motor has the follow characteristics: high speed rolling, small rolling shake, and small rolling noise.

    6. Excellent design makes the machine to be so good operation.

    7. Using the advanced cooling-water machine to cool down the spindle, to make sure the spindle keeping long life and machining having high precision.
