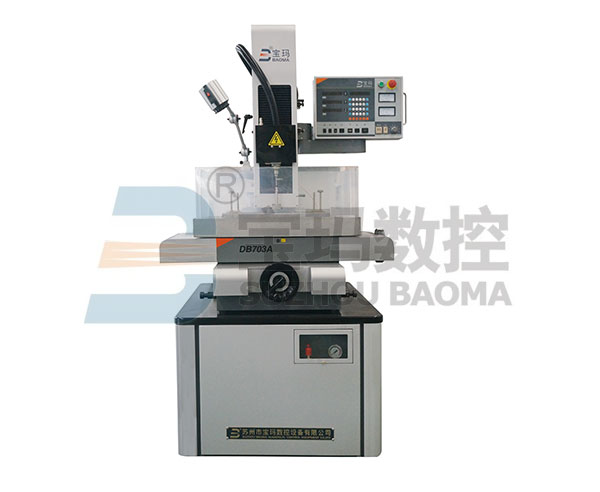

Drilling DB703A

Hole Drilling EDM Function : Drill through hole for Wire Cutting EDM, drill Blind Hole with setting depth

Electrode: Brass tube, Copper tube

Electrode Dia.: 0.3 - 3.0mm

Max. Drill Depth: 300mm

Application: conductive metal such as Steel, Copper, Alloy, Carbide & etc.

Wire Cut EDM + Hole Drilling EDM is enough for Die Mold, for injection mold also need Die Sinking EDM, CNC Machining Center, CNC Engraving & Milling Machines

CE; ISO9001; ISO14001 Apprvoed


Share

    SPECIFICATION AND PARAMETERS


    Specification

    DB703A

    Universal Parameter

    Work table Size310x 486 mmDrilling Depth0 - 300 mm
    Work Table Travel300 x 400 mmZ axis Travel300+(320) mm
    Load of Table300 KgMax. Drilling Speed60 mm2/min
    Electrode Diameter0.3-3.0 mmMax. Working Current30 A
    Water Tank Capacity30 LMax. Power comsumption3.5 KVA
    Machine Weight700 KgVoltage220-415V / 50HZ
    Machine Dimensions1236 x 1025 x 1934 mmWorking SolutionWater/Saponification
    Packing Dimensions1430 x 1340 x 2000 mmFunction of setting depthYes
    Control TypeZNC: Z axis NC ControlZ axis Travel ControlElectric Motor

    High speed small hole drilling machine adopt electrode to drill hole according electrical discharge theory, put on high frequency Pulse electrical power between electrode and workpiece to create small pulse, cooperate with high pressure water plush to make more higher speed erosion, especially fit to drill hole diameter as 0.2mm-3.0mm on stainless, hardenedsteel, cooper, aluminum, and hardalloysteel, the depth-diameter ration can reach to 300:1. Be able to drill directly into bevel or curve surface.This machine is widely used to drill hole which used to be thread wire、and chemical fiber spinneret, spinneret hole of spinneret plate, filter plate, group holes of sieve plate、engine blade、heat dissipation hole of cylinder、the hydraulic、oil way of air operated valve、stomata. The machine can also erode the drill bit or taps broken in the working piece without destroy the original hole or screw.


    High speed small hole drilling machine

    CNC Small Hole Drilling Machine

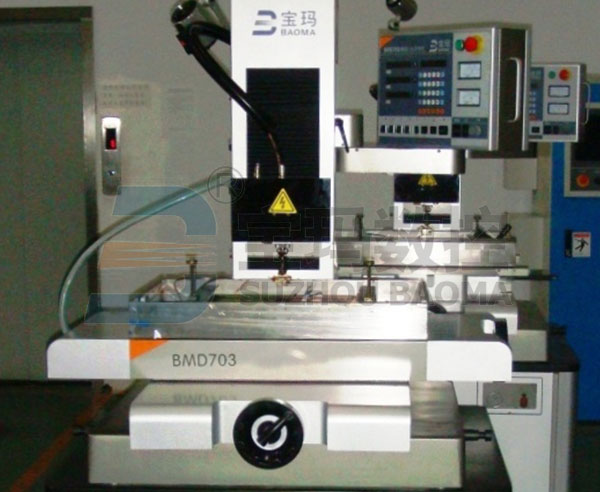

    1.Small Hole Drilling EDM Machine (BMD703-400) characteristics:

    * Can drill deep hole with diameters 0.2mm ~ 3mm (the depth-diameter ratio is 300: 1)

    * The speed of drilling hole is 30mm~60mm depth per minute (it is different for different material)

    * Can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth etc.

    * Can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminium and hard alloy etc

    * Can drill on oblique and curved surface directly

    * Can easily erode the drill and screw tap etc which is broken in the workpiece and not destroy the screw thread of the holes

    * The working water can be normal water or saponification fluid and no pollution is brought

    * The operation is easy and convenient

    * X, Y, Z axes have digital display devices

    * Z axis has the function of setting depth


    CNC Small Hole Drilling Machine

    1.Main performance indexes and technical requirements.

    2. Basic configuration:

    A. Three axes have digital displays; It is consistent with operation

    B. Z axis uses linear guide rail (driven by the step motor with 5 phases 10 beats), it is driven by DC motor

    C. The rotary head is of straight gear transmission, its volume is small

    D. The super large scales integrate circuits make the impulse power supply reliable

    E. The multiple power supply of high and low voltage and high-power VMOS field -effect transistor

    F. The double Z is moved by motor

    G. The operate-control box is adjustable, it is fully considered to convenience of operator

    H. It contains the operation and control mode of DD703

    I. The specialty plunger pump, thread gap filter

    J. The marble working table

    K. The stainless fixtures

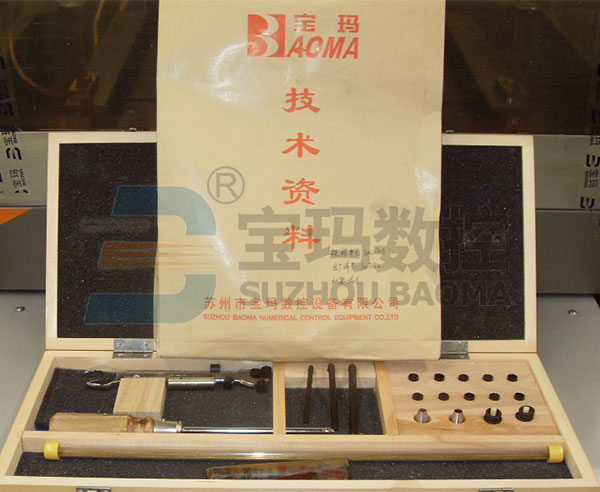

    L. The accessories and consumable parts

    M. The processing polarity can be changed

    N. The processing stability is adjustable


    Drilling EDM

    Drilling EDM


Description

SPECIFICATION AND PARAMETERS


Specification

DB703A

Universal Parameter

Work table Size310x 486 mmDrilling Depth0 - 300 mm
Work Table Travel300 x 400 mmZ axis Travel300+(320) mm
Load of Table300 KgMax. Drilling Speed60 mm2/min
Electrode Diameter0.3-3.0 mmMax. Working Current30 A
Water Tank Capacity30 LMax. Power comsumption3.5 KVA
Machine Weight700 KgVoltage220-415V / 50HZ
Machine Dimensions1236 x 1025 x 1934 mmWorking SolutionWater/Saponification
Packing Dimensions1430 x 1340 x 2000 mmFunction of setting depthYes
Control TypeZNC: Z axis NC ControlZ axis Travel ControlElectric Motor
Application

High speed small hole drilling machine adopt electrode to drill hole according electrical discharge theory, put on high frequency Pulse electrical power between electrode and workpiece to create small pulse, cooperate with high pressure water plush to make more higher speed erosion, especially fit to drill hole diameter as 0.2mm-3.0mm on stainless, hardenedsteel, cooper, aluminum, and hardalloysteel, the depth-diameter ration can reach to 300:1. Be able to drill directly into bevel or curve surface.This machine is widely used to drill hole which used to be thread wire、and chemical fiber spinneret, spinneret hole of spinneret plate, filter plate, group holes of sieve plate、engine blade、heat dissipation hole of cylinder、the hydraulic、oil way of air operated valve、stomata. The machine can also erode the drill bit or taps broken in the working piece without destroy the original hole or screw.


High speed small hole drilling machine

Features

CNC Small Hole Drilling Machine

1.Small Hole Drilling EDM Machine (BMD703-400) characteristics:

* Can drill deep hole with diameters 0.2mm ~ 3mm (the depth-diameter ratio is 300: 1)

* The speed of drilling hole is 30mm~60mm depth per minute (it is different for different material)

* Can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth etc.

* Can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminium and hard alloy etc

* Can drill on oblique and curved surface directly

* Can easily erode the drill and screw tap etc which is broken in the workpiece and not destroy the screw thread of the holes

* The working water can be normal water or saponification fluid and no pollution is brought

* The operation is easy and convenient

* X, Y, Z axes have digital display devices

* Z axis has the function of setting depth


Control System

CNC Small Hole Drilling Machine

1.Main performance indexes and technical requirements.

2. Basic configuration:

A. Three axes have digital displays; It is consistent with operation

B. Z axis uses linear guide rail (driven by the step motor with 5 phases 10 beats), it is driven by DC motor

C. The rotary head is of straight gear transmission, its volume is small

D. The super large scales integrate circuits make the impulse power supply reliable

E. The multiple power supply of high and low voltage and high-power VMOS field -effect transistor

F. The double Z is moved by motor

G. The operate-control box is adjustable, it is fully considered to convenience of operator

H. It contains the operation and control mode of DD703

I. The specialty plunger pump, thread gap filter

J. The marble working table

K. The stainless fixtures

L. The accessories and consumable parts

M. The processing polarity can be changed

N. The processing stability is adjustable
