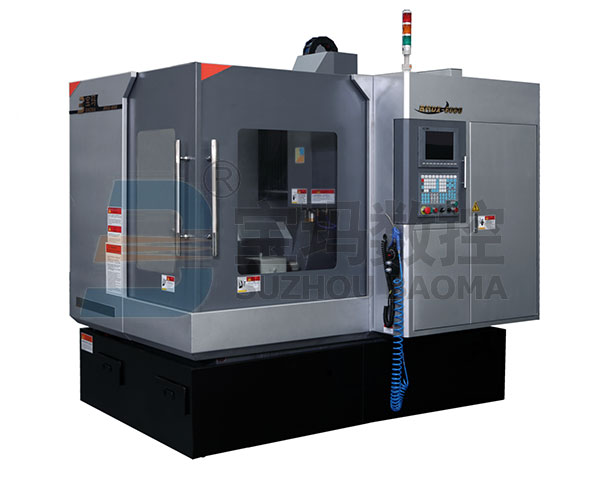

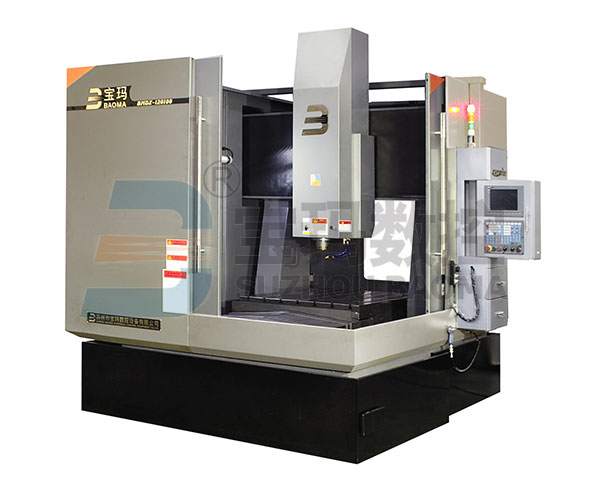

BMDX8060 CNC Engraving & Milling Machine

1, Integral Gantry structure, high rigidity machine body.

2, Convenient load big work piece by hoist.

3, Advanced finite element analysis.

4, Precision ball bearing screw.

5, Scrap can be easily cleaned.

6, High speed and precision spindle.

7, Humanity design on the control cabinet.


Share

    Parameters


    Travel / spaceX/Y/Z axis travelmm800 / 1000 / 450
    Table upper surface to spindle nose end facemm140 - 590

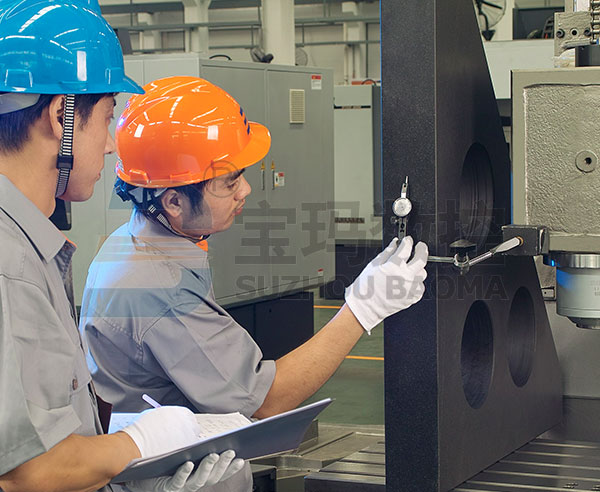

    AccuracyPositioningmm± 0.005 / 300
    Repeatabilitymm± 0.003 / 300
    TableTable dimensionmm850 x 1100
    Max. load on tableKg700
    Power (X Y Z)Kw1.8,1.8,1.8
    T shape groovemm18T x P120 x 7
    Spindle18000rpm / 7.5kw / BT30
    Feeding speedRapid speed (X/Y/Z)mm / min15000
    Cutting speed (X/Y/Z)mm / min6000
    Outer size and weightMachine heightmm2900
    Floor spacemm2500 x 2850
    Net weightKg6500
    Total input powerKw22


    1. The opening protector design makes big work piece loading easily.

    2. In design we use the advanced finite element software to do dynamic simulation and construction analysis in order to ensure the machine possesses the best construction rigidity, machining precision and machining steady.

    3. X, Y, Z use precision ball bearing screw, all have be hauled advance, that will ensure machine get the best precision and make the position error to the lowest.

    4. The slop bed and the big capacity water tank make scrap to be cleaned easily.

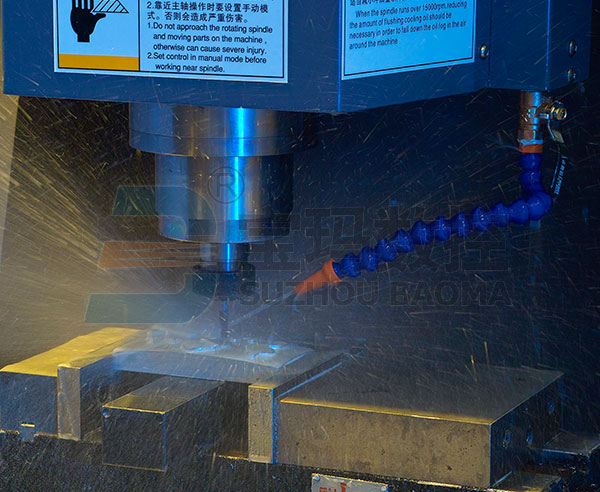

    5. The one key to make sure the machining result excellent is high speed and precision spindle. The power source for small tool engraving comes from the electric motor of high speed and precision spindle. If you want to make the small tool working in good condition, the spindle electric motor has the follow characteristics: high speed rolling, small rolling shake, and small rolling noise.

    6. Excellent design makes the machine to be so good operation.

    7. Using the advanced cooling-water machine to cool down the spindle, to make sure the spindle keeping long life and machining having high precision.

    Our company offer Taiwan SYNTEC, LNC or Germany PA system according to the customer’s request, and try our best to offer you the best products.


    Taiwan Syntec940i specialist control system

    1. Be able to connect the man-machine communicated interface of Easy view and Digital

    2. Wide range to connect with other equipment

    3. Convenient to communicate through the figural interface

    4. Convenient to renew the software through the mobile hard disk

    5. Control several axes in different synchronous way by PLC

    6. The function of video mending

    7. Nice panel design and steady controller design


    This machine composed carving function and milling function, spindle speed is high and rapid speed is fast, it can engrave precision drawing and emboss on kinds of material like aluminum, brass, steel and nonmetal material. Meanwhile this machine is with milling function, can make precision machining to improve efficiency



    Use for making mould, carve industry


    Use for making mould, carve industry

    Main Characteristic and capacity


    Cast: Use of mechanite cast iron GC40 (GC275)

    Mechanite cast iron GC40 is suitable for casting with thickness 10-15mm. This kind casting is good in compact structure, good intensity, suitable hardness, low coefficient of friction, it has feature of self-lubricating, after quenching treatment, and it is widely used as workpiece which have friction of its surface, such as machine tools bed, seat, working table, and cylinder, and so on.

    Steady, rigid structure

    1.Gantry structure characteristic improve machine strength and rigid greatly

    2.Adopt the most advanced limited unit analysis software to do dynamic imitation and analyze various data. Such method makes sure the best structure rigidity, mechanical precision and machining stability.

    3.Adopt high quality mechanite cast iron, make anneal and double treating to eliminate stress

    4.Z nut fixture and workingtable whole body design to get great rigid

    5.Heavily machine make sure good steady

    X,Y, Z adopt Japan NSK ball screw and bear


    Main Characteristic and capacity


    Main Characteristic and capacity

    High speed, high efficiently precision machining

    1.High speed precision spindle, RPM can reach 24000

    2.Adopt precision line guide way to get good precision

    3.Adopt precision ball screw

    4.Oil cooler for spindle(optional)

    Friendly operation environment

    1.Oil-water separation design

    2.Chip conveyor design

    Safe and simply operate table


    Tai wan Syntec control system specialist


    1.High brightness LCD

    2.Support FLOPPY & RS232& 10/100 Mbps Ethernet

    3.Four full servo axes (P command), hand wheeler special linker

    4.Standard I/O 32 INPUT, 32 OUTPUT

    5.12 Bit D/A voltage output to control spindle

    6.Mini controller box

    7.Adopt Syntec stander controller function in mini controller box

    8.Second controller panel for mill machine

    9. General Specifications: (SK3)

    10.Metal key with anti oil characterizes

    11.Syntec standard keyboard design

    12.35 keys controller panel

    13. Two units whirl switch (can add more one unit)

    14.Independent INPUT/OUTPUT points for setting

    SYNTEC separate whole body controller

    Optional accessories:

    1)Remote handle jog

    2)Input terminal

    3)Output terminal


    Tai wan Syntec control system specialist

    Tai wan Syntec control system specialist


    Packing

    Packing

Description

Parameters


Travel / spaceX/Y/Z axis travelmm800 / 1000 / 450
Table upper surface to spindle nose end facemm140 - 590
AccuracyPositioningmm± 0.005 / 300
Repeatabilitymm± 0.003 / 300
TableTable dimensionmm850 x 1100
Max. load on tableKg700
Power (X Y Z)Kw1.8,1.8,1.8
T shape groovemm18T x P120 x 7
Spindle18000rpm / 7.5kw / BT30
Feeding speedRapid speed (X/Y/Z)mm / min15000
Cutting speed (X/Y/Z)mm / min6000
Outer size and weightMachine heightmm2900
Floor spacemm2500 x 2850
Net weightKg6500
Total input powerKw22


1. The opening protector design makes big work piece loading easily.

2. In design we use the advanced finite element software to do dynamic simulation and construction analysis in order to ensure the machine possesses the best construction rigidity, machining precision and machining steady.

3. X, Y, Z use precision ball bearing screw, all have be hauled advance, that will ensure machine get the best precision and make the position error to the lowest.

4. The slop bed and the big capacity water tank make scrap to be cleaned easily.

5. The one key to make sure the machining result excellent is high speed and precision spindle. The power source for small tool engraving comes from the electric motor of high speed and precision spindle. If you want to make the small tool working in good condition, the spindle electric motor has the follow characteristics: high speed rolling, small rolling shake, and small rolling noise.

6. Excellent design makes the machine to be so good operation.

7. Using the advanced cooling-water machine to cool down the spindle, to make sure the spindle keeping long life and machining having high precision.

Our company offer Taiwan SYNTEC, LNC or Germany PA system according to the customer’s request, and try our best to offer you the best products.


Taiwan Syntec940i specialist control system

1. Be able to connect the man-machine communicated interface of Easy view and Digital

2. Wide range to connect with other equipment

3. Convenient to communicate through the figural interface

4. Convenient to renew the software through the mobile hard disk

5. Control several axes in different synchronous way by PLC

6. The function of video mending

7. Nice panel design and steady controller design


Application

This machine composed carving function and milling function, spindle speed is high and rapid speed is fast, it can engrave precision drawing and emboss on kinds of material like aluminum, brass, steel and nonmetal material. Meanwhile this machine is with milling function, can make precision machining to improve efficiency



Use for making mould, carve industry


Use for making mould, carve industry

Features

Main Characteristic and capacity


Cast: Use of mechanite cast iron GC40 (GC275)

Mechanite cast iron GC40 is suitable for casting with thickness 10-15mm. This kind casting is good in compact structure, good intensity, suitable hardness, low coefficient of friction, it has feature of self-lubricating, after quenching treatment, and it is widely used as workpiece which have friction of its surface, such as machine tools bed, seat, working table, and cylinder, and so on.

Steady, rigid structure

1.Gantry structure characteristic improve machine strength and rigid greatly

2.Adopt the most advanced limited unit analysis software to do dynamic imitation and analyze various data. Such method makes sure the best structure rigidity, mechanical precision and machining stability.

3.Adopt high quality mechanite cast iron, make anneal and double treating to eliminate stress

4.Z nut fixture and workingtable whole body design to get great rigid

5.Heavily machine make sure good steady

X,Y, Z adopt Japan NSK ball screw and bear


Main Characteristic and capacity


Main Characteristic and capacity

High speed, high efficiently precision machining

1.High speed precision spindle, RPM can reach 24000

2.Adopt precision line guide way to get good precision

3.Adopt precision ball screw

4.Oil cooler for spindle(optional)

Friendly operation environment

1.Oil-water separation design

2.Chip conveyor design

Safe and simply operate table


Control System

Tai wan Syntec control system specialist


1.High brightness LCD

2.Support FLOPPY & RS232& 10/100 Mbps Ethernet

3.Four full servo axes (P command), hand wheeler special linker

4.Standard I/O 32 INPUT, 32 OUTPUT

5.12 Bit D/A voltage output to control spindle

6.Mini controller box

7.Adopt Syntec stander controller function in mini controller box

8.Second controller panel for mill machine

9. General Specifications: (SK3)

10.Metal key with anti oil characterizes

11.Syntec standard keyboard design

12.35 keys controller panel

13. Two units whirl switch (can add more one unit)

14.Independent INPUT/OUTPUT points for setting

SYNTEC separate whole body controller

Optional accessories:

1)Remote handle jog

2)Input terminal

3)Output terminal


Tai wan Syntec control system specialist

Tai wan Syntec control system specialist


Packing & Installation

Packing

Packing
